Larger CFP's (8-180 cylinders/day)
Larger CFP's (8-180 cylinders/day)
If you are in an area poorly served (unreliable oxygen supply and/or high prices) by the traditional gas companies, you can fill your own oxygen cylinders.

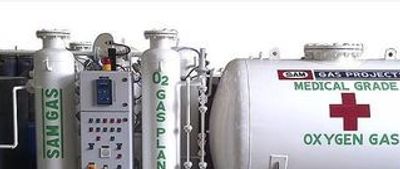

OXYGEN SOLUTIONS NOW offers a complete line of cylinder filling plants (CFP's). These plants can be designed to produce oxygen up to 95% purity for most oxygen applications, including breathable hospital requirements. The oxygen purity from OXYGEN SOLUTIONS NOW plants is typically at 93% (+/- 3%), with the balance being even amounts of nitrogen & argon. OXYGEN SOLUTIONS NOW equipment is fabricated in accordance with all relevant codes (ASME, ANSI, NEMA, CE) and can be configured to meet CRN and CSA Standards. Oxygen produced meets the United States Pharmacopeia (USP) XXII Oxygen 93% Monograph as well as European and other Pharmacopeia.
OXYGEN SOLUTIONS NOW CFP's include all the support equipment required such as air compressors, air dryers and oxygen compressors for complete turnkey systems. All models are factory tested, and most are skid mounted.
Complete CFP's, capable of filling 8 to 180 cylinders per day are currently available in standard sizes. The plant size is based on the number of high pressure, 6m3 size (aka. K or H-size) oxygen cylinders the plant can fill in 24 hours. Listed below is a quick reference on the model and size of the plants we offer. Please contact us about custom sizes available too.
Model CFP-100 8 cyl's/day
Model CFP-175 10 cyl's/day
Model CFP-250 20 cyl's/day
Model CFP-500 50 cyl's/day
Model CFP-650 60 cyl's/day
Model CFP-1000 100 cyl's/day
Model CFP-1250 120 cyl's/day
Model CFP-1800 180 cyl's/day
These plants are designed to be shipped in standard 20 or 40-foot ocean containers for worldwide transit. On-site commissioning & training is available from an OXYGEN SOLUTIONS NOW technician. Electrical power and an enclosure for the plant are all that is required at the customer's site to get started.
Oxygen Mobil Generating Systems
Oxygen: Whenever, Wherever. As a leading manufacturer of oxygen generators, Oxygen Generating Systems Intl. (Oxygen Solutions Now) has designed a Mobile Oxygen Generating System to suit your needs. The Pressure Swing Adsorption technology allows for oxygen generation of 93% (+/- 3%). These units are complete systems that simply require electricity. Models are available equipped with their own generator. Units are available in trailers, ISO containers, carts, and pods to name a few.
DEPENDABLE / DURABLE / ECONOMICAL
Oxygen Solutions Now can customize units for:
emergency management, water departments (for dissolved oxygen), hospitals or any government or civilian organization for fast mobilization to large amounts or people at any location for disaster preparedness.
EMERGENCY MANAGEMENT
In the event of a medical emergency or natural disaster, first responders/EMTs need to be able to administer oxygen immediately. Oxygen Solutions Now has developed mobile units that can be can be deployed and generate medical grade oxygen on-site and administer relief immediately. This critical equipment provides flexibility during an emergency. You can administer low pressure oxygen directly to patients or fill your own cylinder.
You may qualify for grant funding. Oxygen Solutions Now can be partnership with any medical organization that wants to facilitate our services. Additional markets include hospitals, clinics, nursing homes and oxygen saturation.
OXYGEN SATURATION / DISSOLVED OXYGEN
Oxygen saturation refers to the amount of dissolved oxygen (DO) in bodies of water. Insufficient levels of DO in bodies of water result in an increase of anaerobic organisms (bacteria) which can kill plants and fish and cause unpleasant odors. OGSI's mobile oxygen generating systems can saturate the water with the appropriate levels of O2 and increase DO levels. Proper DO levels an important aspect in sustaining a water body ecosystem.
ADVANTAGES
* Eliminates dependency of cylinder filling * Turnkey * Produces oxygen 24/7 * Low operating costs * Easily transportable
Oxygen Generators
Oxygen Solutions Now offers a range of generators based on your requirements. They are designed for applications requiring outputs from 25 to 5000 SCFH (12 to 2360 LPM). You’ll never pay for capacity you don’t need. Non-standard generators are available on request.
Our line of Pressure Swing Adsorption (PSA) oxygen generators can deliver a constant flow of up to 93% (± 3%) oxygen at 45-60 psi. Higher oxygen pressure is optionally available.
These units are available with telemetric communication packages. The plant can be monitored from our factory to facilitate quicker service or software updates.
ADVANTAGES
OXYGEN SOLUTIONS NOW 's plants are the most energy efficient plants on the market. Extract oxygen directly from the atmosphere and deliver it to any medical or industrial application with an OXYGEN SOLUTIONS NOW oxygen generator.
Dependable – MADE IN USA
Every PLC-controlled generator is assembled and tested in our North Tonawanda, NY production facility. The zeolite sieve is factory sealed in solid steel tanks, and rarely needs replacement. With very few moving parts, our generators are built to provide thousands of hours of continuous, reliable service. Routine maintenance is as simple as changing an air filter.
Durable
From their precision-welded tank assemblies, to their robust manifolds, our generators operate in the harsh environments of Africa, Asia, South America and the Yukon.
Economical
Eliminate the unnecessary costs of transportation, storage and cylinder rental. OXYGEN SOLUTIONS NOW ’s oxygen generators are economically priced so that you can realize a return on investment within a short period of time. Supplying oxygen for as little as 3 kW/100 SCF, OXYGEN SOLUTIONS NOW ’s oxygen generators are the most energy efficient plants available.
Unfamiliar with PSA Oxygen Systems?
Call to request a personalized quotation. OXYGEN SOLUTIONS NOW can provide the proper air compressor, air dryer and storage tank combination to optimize your oxygen system. We can assemble the system and test it in our factory before shipment. All components can be mounted to a steel skid and pre-wired for easy transportation and set-up.
MOGS 50/100
The OXYGEN SOLUTIONS NOW Medical Oxygen Generating System (available in MOGS-50 and MOGS-100 models) has been designed to produce oxygen onsite and fill high pressure cylinders (up to 2200 psi) or to supply oxygen directly at up to 70 psi. This system uses oil-free air compressors and modular oxygen generators for redundancy and reliability.
The system produces medical grade oxygen in accordance with the US Pharmacopeia specifications. There is a continuous gas quality monitoring system included with automatic shutdown if a fault occurs. OXYGEN SOLUTIONS NOW is the only onsite oxygen generator manufacturer to offer equipment with trans-filling and blast containment.
Cost Reduction
This system can reduce oxygen supply costs by 80% or more in most cases. Less than 1 kWh of energy is required to fill one 'M'-size oxygen cylinder and all delivery and handling charges from your current supplier are eliminated.
Disaster Preparedness
By making oxygen and filling cylinders at your site the uncertainty and logistics of delivered oxygen supplies are eliminated. With this system in place care providers are also assured that in the event of a disaster their oxygen supply chain will not be in jeopardy. The system itself can also be transported for use at a disaster site. It can be moved by truck and fits easily through a standard 36" wide doorway.
Target Customers
Typical customers for this system include anyone in the Emergency Medical Services industry (ex. Fire Stations, Ambulance Services) along with Hospitals, Clinics, Nursing Homes and Veterinary Centers.
Features
* Emergency-Stop button
* PLC controller with NEMA 4 electrical enclosure and UL® listed electrical panel
* Touchscreen operator interface panel
* Two H size oxygen cylinders installed in an integral rack
* Sound attenuating enclosure with slam-action latches and lift-off hinges
* Two position containment fill station accommodates oxygen cylinders up to 31" overall length
Options
Remote fill hose with up to 75 feet of high pressure 3000 psi hose for re-filling cylinders on ambulances without having to remove them
